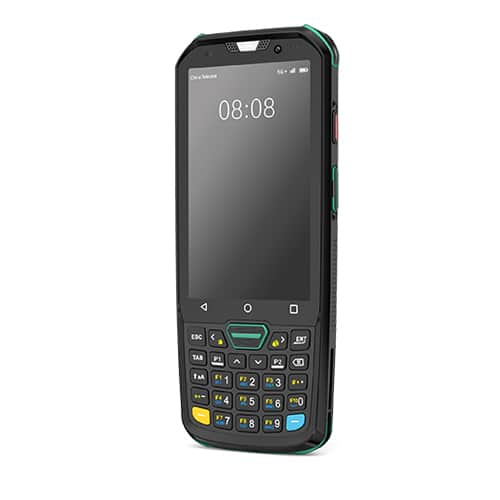

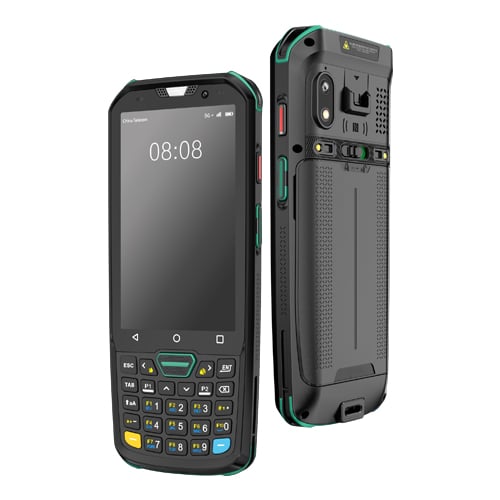

A82 Internet of Things Handheld Terminal

Slim & Flexible for Productivity

A82 Handheld Scanner is designed to provide flexible and efficient productivity applications for complex scenarios such as warehousing and manufacturing with a lightweight and compact design, and a flagship configuration and performance to provide flexibility and versatility.

Request Quote
View Brochure
A82 Scanner
A82 Scanner
A82 Scanner
A82 Scanner
A82 Scanner

Dual Engine & Dual Camera

A82 is equipped with Newland CM60 Scan Engine ,dual-engines and dual-cameras. Both engines work at the same time and the two cameras can scan barcode at long and short focal length seperately, double speed, double efficiency, and accurately read all types of 1D/2D barcode.

Make Data Entry More Easily

With two input methods, enterprise keyboard and on-screen keypad, you can flexibly choose physical keys and screen according to your work needs, and you can also realize the joint application of on-screen keys to achieve an efficient combined input application experience.

Powerful Performance

Designed for maximum productivity ，powered with Octa-core 2.0GHz chip, Android 11 OS, A82 is extremely fast, stable and powerful.

Enterprise-level Security OS

Customized for enterprise-level scenarios, OS is fully upgraded in efficiency and experience; enterprise-level equipment cloud management platform HMS provides professional equipment management, application and monitoring, and supports privatized deployment.

Ultra Slim Design

We innovative high-integration architecture design, is made of high-strength materials, strong and tough; the size of the form is designed to be compact and suitable for one-handed grip, which feels more dexterous.

Rugged

A82 has IP67 Sealing and is 1.5 m drop to concrete. It performs well in a wide range of environment temperature with anti-collision ,anti-vibration and dust-proof design.

Physical Characteristics

Dimensions 160.5(H)×67(W)×17(T)mm
6.3(H)×2.6(W)×0.67(T)inch
Weight 8.57 oz./243 g（Batteries required,Depends on Product Configuration）
Display 4 in. 800(H)×480(W) WVGA industrial-grade IPS display
Imager Window Corning® Gorilla® Glass
Touch Panel Corning® Gorilla® Glass
Capacitive touch panel,Support Water&Gloves Touch Mode
Backlight 450 NITS, LED
Power Removable&Rechargeable 3.85V 5100mAh Lithium-ion battery
Expansion Slot Micro SD Card slot, 256GB
Expansion Ports 2 Pin Rear connection：Trigger key signal
4 Pin Bottom connection：Charging port 5V/3A,Support
USB communication and OTG mode
SIM Slots 2x Nano SIM
Notifications Audible tone; multi-color LEDs; Vibration
Network Connections 450 NITS, LED
Voice and Audio Speaker, Receiver, Dual Mic
Keypad 26 key Numeric with FN keys, Supports on-screen keypad
Interface Ports Bottom USB 2.0 OTG - host/client (Type-C)

Performance Characteristics

CPU Octa-core, 2.0GHz
Operating System Android 11.0
RAM 2G/3G/4GB LPDDR3
Flash 16GB/32GB/64GB eMMC 5.1

User Environment

Operating Temp. Operating Temp.
Storage Temp. Storage Temp.
Humidity Humidity
Sealing Sealing
Drop Specification Drop Specification
Tumble Specification Tumble Specification
Electrostatic Discharge (ESD) Electrostatic Discharge (ESD)

Accessories

Standard Accessories Adapter Charger ×1、USB Type-C cable ×1、Rechargeable Battery ×1、Hand Strap×1
Optional Accessories Single cradle,Snap on Trigger Handle(coming soon)

Interactive Sensor Technology

Sensor Proximity Sensor、Light Sensor、Accelerometer、 Magnetometer、Gyroscope

Data Capture

Scanning Newland CM60 2D: 2D Standard range omnidirectional imager
Camera Front 5 MP fixed focus; f/2.4 aperture
Rear 13 MP auto focus; f/2.2 aperture; Flash LED
NFC High RF output power; ISO15693、ISO14443A/B、MIFARE：Mifare S50,Mifare S70,Mifare UltraLight,Mifare Pro,Mifare Desfire 、FeliCa Supported cards

Wireless WAN

WAN Radio Frequency TDD-LTE(B34/B38/B39/B40/B41)
FDD-LTE(B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B19/B20/B25
/B26/B28A/B28B/B30/B66)
WCDMA(B1/B2/B4/B5/B6/B8/B19)
TD-SCDMA(B34/B39)
CDMA2000 1x EV-DO Rev.A BC0 (800MHz)
CDMA 1x
GSM/EDGE/GPRS(850/900/1800/1900)
Data Rate GPRS：DL / UL171.2kbps
EDGE：DL / UL384 kbps
CDMA1x: DL 153.6kbps/ UL 153.6kbps
EVDO: DL 3.1 Mbps / UL 1.8 Mbps
DC-HSPA+: DL 42.2Mbps / UL 11.5 Mbps
LTE：DL 150 Mbps (CAT4) / UL 75 Mbps（CAT5)

GPS

Positioning System GPS with A-GPS: Glonass; BeiDou; Galileo

Wireless LAN

Radio IEEE 802.11 ac/a/b/g/n/d/e/h/i/j/k/r/v/w（2.4G/5G Dual band WIFI）
Data Rates 5 GHz: 802.11a/n/ac — up to 433 Mbps
2.4 GHz: 802.11b/g/n — up to 200 Mbps
Operating Channels CH1-CH13,CH36-CH165
Security and Encryption WEP,WPA/WPA2-PSK,WAPI,WAPI-PSK
EAP:EAP-TLS,EAP-TTLS,PEAP-MSCHAPv2,PEAP-TLS,PEAP-GTC, PWD,SIM,AKA
Fast Roam Supports 802.11r Fast Roaming

Wireless PAN

Bluetooth Bluetooth 4.1 ,Bluetooth Low Energy (BLE);secondary
Bluetooth BLE beacon for finding lost (powered off) devices
Communication Distance >10m
