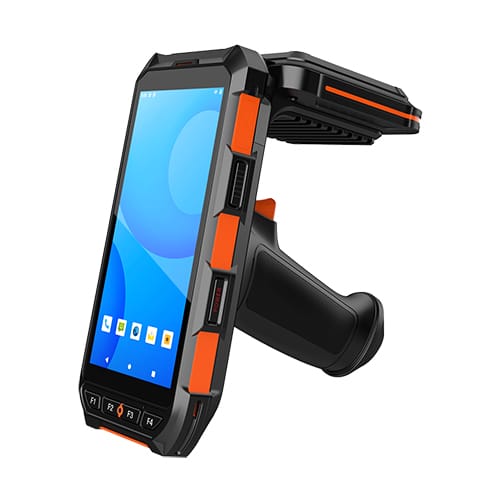

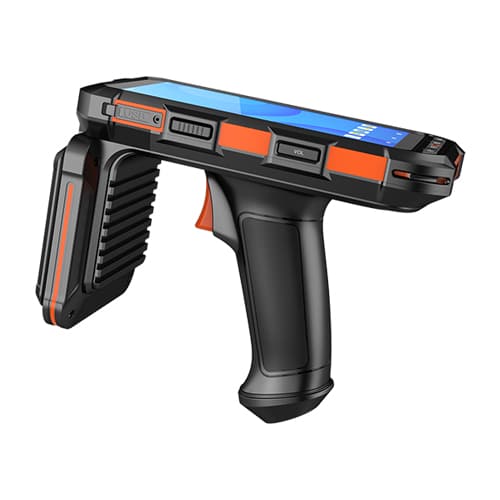

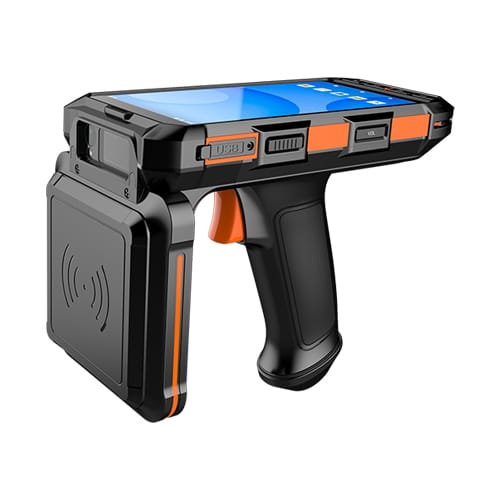

AH4 Android Mobile Computer
Android Mobile Computer
Industrial and Humanized Hardware Design
Industrial & humanized keypad design and tough 5.5 inch touch screen together with high resolution of 720*1440 display shall match high standards in logistics, express and retail.
Octa-Core Processor & Large Memory
Android 10.0 OS with memory of 3GB RAM/32GB ROM or 4GB RAM/64GB ROM shall provide the highly standard experience
Superior Data Communication and Security Guarantee
Double insurance of 4G &WIFI network and highly secured Android 10.0 system shall provide high-speed data communication and perfect security guarantee.
Specifications
Physical Characteristics
| Dimension | 171mm(H)x81mm(W)x20.4mm(D)±2 mm(without the pistol grip and UHF shield) |
| Weight | Net Weight :600g (including battery&wrist strap) |
| Display | Tough 5.5 in. TFT-LCD(720x1440)touch screen with backlight |
| Backlight | LED backlight |
| Expansions | 2 PSAM, 2 SIM, 1 TF |
| Battery | Rechargeable li-ion polymer, 3.8V, 7200mAh |
Perfomance Characteristics
| CPU | Cortex A73 2.0GHz octa-core |
| Operating System | Android 10.0 |
| Storage | 4GB RAM/64GB ROM, MicroSD(max 256GB expansion) |
User Environment
| Operating Temp. | -20℃ to 50℃ |
| Storage Temp. | -20℃ to 70℃ |
| Humidity | 5%RH to 95%RH(non-condensing) |
| Drop Specifications | 5ft./1.5 m drop to concrete across the operating temperature range |
| Sealing | IP65, IEC compliance |
| ESD | ±15kv air discharge, ±8kv direct discharge |
Development Environment
| SDK | Handheld-Wireless Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
Data Communication
| WWAN | TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 5,7,8,12, 17, 20; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz); |
| WLAN | 2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac |
| WPAN | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2 |
| GPS | GPS(embedded A-GPS), accuracy of 5m |
Data Captuer
Barcode Reader(Optional)
2D barcode
| 2D CMOS Imager | Honeywell N6703 2D Scan Engine/ Newland NLS-CM60/Newland NLS-N1 |
| Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. |
Color Camera
| Resolution | Rear 13 megapixel, front 5.0 megapixel |
| Lens | Auto-focus with LED flash |

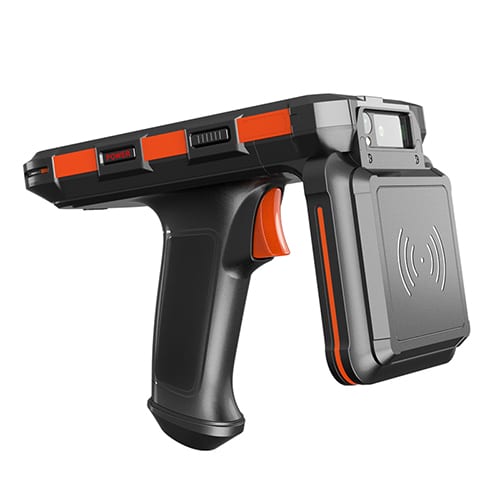

RFID Reader(Optional)
| RFID NFC | |
| Frequency | 13.56MHz |
| Protocol | ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| R/W Range | 2cm to 5cm |
| RFID UHF | |
| Frequency | 865~868MHz or 920~925MHz |
| Protocol | EPC C1 GEN2/ISO 18000-6C |
| Antenna | Gain Circular antenna(4dBi) |
| R/W Range | 18m(tags and environment dependent) |
PSAM Security(Optional)
| Protocol | ISO 7816 |
| Baudrate | 9600, 19200, 38400,43000, 56000, 57600, 115200 |
| Slot | 2 slots(maximum) |
Accessories
| Standard | 1xPower Supply; 1xLithium Polymer Battery; 1 x Type-C cable |

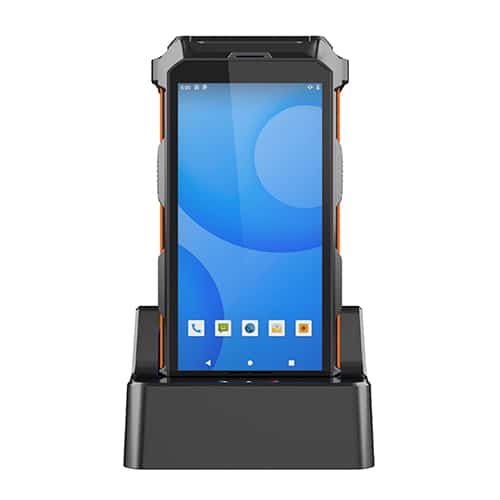

| Optional | Cradle |
